McDonnell F2H Banshee Nose Landing Gear

McDonnell redesigned the nose landing gear of the F2H-1/2 Banshee for the heavier F2H-3/4 so that the strut could be extended for a catapult launch at a higher initial angle of attack.

The -1/2 nose gear was a trailing-arm configuration with no separate scissors to keep the upper and lower sections of the shock strut aligned. The -3/4 had a separate scissors with the nose gear fork swiveling on a bearing mounted on the front of the shock strut.
The nose wheels were the same diameter. The redesign resulted in it being located farther forward relative to the nose wheel well.
Note that the nose wheel axle is located directly under the shock strut on the -3/4 Banshee rather than significantly behind it as on the -1/2.

The shimmy damper was relocated to the lower side of the shock strut and a shrink strut was added to compress the shock strut as the landing gear retracted.

Most of this detail was hidden by the nose gear doors when the airplane was on the ground.

Friday, July 5, 2019

North American FJ-4/4B Main Landing Gear

A question has been asked about the accuracy of the FJ-4 main landing gear in model kits.

The FJ-4 main landing gear was different from the FJ-2 and FJ-3's. It was a so-called trailing arm configuration, which separated the landing gear strut from the shock absorption function. My guess is that this was done in this instance to reduce the width of the landing gear when viewed from the front, because the FJ-4 wing was thinner to increase the airplane's critical Mach number (there are other benefits - see John Eaton's comment below).

This is the best picture I've found so far of the configuration:
Note that the piston of the shock strut extends above it and shock strut is attached to the one-piece trailing arm forward of the wheel's axle. Roughly speaking, a line drawn between the trailing arm pivot point (see below) and the wheel axle should be parallel to the ground.

Static-display FJ-4s may have the shock strut fully collapsed as in this picture:
Photo by Fotios Rouch

What's worse, the display FJ-4B might not have the correct wheel hub:
Bill Spidle Photos

 The actual main landing gear hub/wheel appears to be identical to the F4D's:
https://tailspintopics.blogspot.com/2015/07/its-not-that-easy-to-avoid-error.html



The main landing gear is angled aft, probably because of the desired location for the mounting structure in the wing versus the required location of the wheel relative to the airplane cg. The trailing arm is not accurately depicted - it actually has a kink in it between the gear strut and the wheel as shown above.

Note that the tire diameter is given as 26", which is the green circle.

The kink in the trailing arm is required to allow full extension of the shock absorber.

The main landing gear wheel doesn't appear to have changed during its service life, always being the "forged" configuration. The nose landing gear wheel does seem to be different in some instances.
Note that the "link" extending aft of the shock strut is attached to the swiveling section of the nose landing gear and "rides" a ramp in the wheel well to mechanically rotate the wheel so it lies flat in the wheel well.

Proper "sit" is important to a model's appearance on its landing gear. Note however, that it will vary with the weight of the airplane (with and without full fuel and external stores). If the airplane's brakes are applied while it is being towed or pushed back, the nose gear strut may also compress or extend slightly, changing the true static sit.

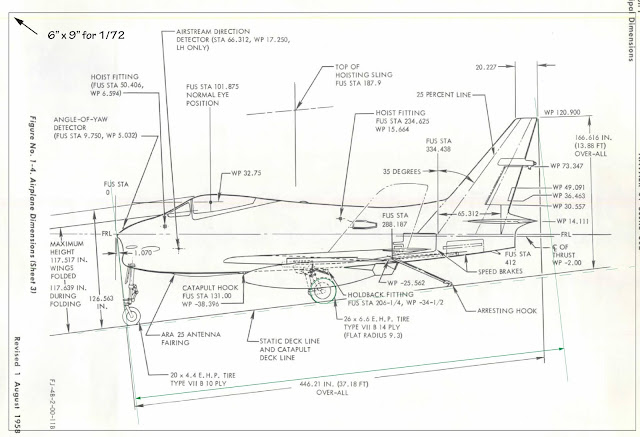

Note that I've corrected the original drawing for height vs width using the water lines versus fuselage stations and also sloppy drafting. The dashed line is the location of the ground with respect to the overall heights given above the canopy and the vertical fin. (For 1/48, the box is 9" x 13.5")
